Customize using plugins

The pibooth application is built on the top of pluggy that gives users the ability to extend or modify its behavior thanks to plugins.

Several plugins maintained by the community are available. They add extra features to pibooth. Have a look to the plugins on PyPI.

You can also easily develop your own plugin, and declare it in the [GENERAL][plugins] key of the configuration.

What is a plugin?

A plugin is a set of functions (called hooks) defined in a python module and participating to the pibooth execution when they are invoked.

The list of available hooks are defined on this chapter. A plugin implements a subset of those functions.

There are 2 families of hooks implemented in pibooth:

  • State-independent hooks: used to change de default components likes camera, printer, … Note that plugins defining those hooks may not be dinamically enabled/disabled.

  • State dependant hooks (see below): used to change state behavior.

Influencing states

The pibooth application is built on the principle of states. Each state is defined by a specific scene (with same name as state one) and possible hooks to handle the user actions.

A scene represent the visual interface displayed to the user while the state is active.

The following states are defined:

  • wait : wait for starting a new capture sequence

  • choose : selection of the number of captures

  • chosen : confirm the number of captures

  • preview : show preview and countdown

  • capture : take a capture

  • processing : build the final picture

  • print : show preview and ask for printing

  • finish : thank before going back to wait state

  • failsafe : oops message when an exception occurs

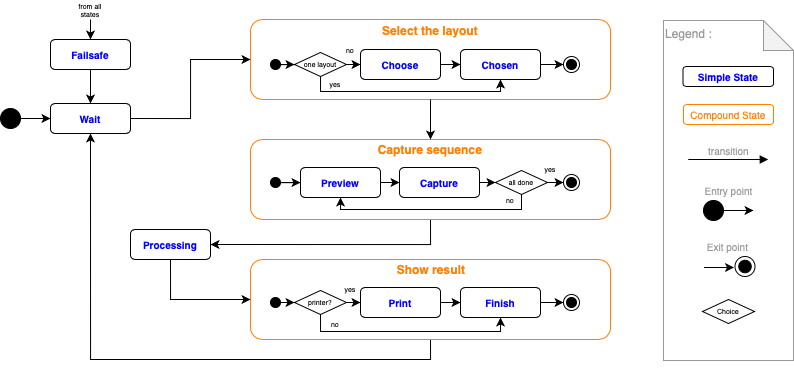

State sequence

There are four hooks defined for each state.

  • state_<name>_enter

    Invoked one time when the state is activating.

  • state_<name>_do

    Invoked in a loop until the state is switching to an other one.

  • state_<name>_validate

    Invoked in a loop, returns the name of the next state if all conditions are met (else return None).

  • state_<name>_exit

    Invoked one time when the state is exiting.

Code skeleton

A plugin is generally a Python module called pibooth_[...].py. For a better configuration management, it should have the constant __version__ set to the plugin version:

__version__ = "1.0.0"

The pibooth_configure hook permits to define some new configuration options. At this step of the starting process, only the pre-loaded configuration is available (application is not created yet).

@pibooth.hookimpl
def pibooth_configure(cfg):
    cfg.add_option('CONTROLS', 'startup_led_pin', 29,
                   "Physical GPIO OUT pin to light a LED at pibooth startup")

The new objects, which should persist between states, can be created and attached to the application instance in the pibooth_startup hook:

@pibooth.hookimpl
def pibooth_startup(cfg, app):
    app.led_startup = LED("BOARD" + cfg.get('CONTROLS', 'startup_led_pin'))

Access to internal variables

cfg

class PiboothConfigParser(filename, plugin_manager, load=True)[source]

Class to parse and store the configuration values.

The following attributes are available for use in plugins (cfg reprensents the PiboothConfigParser instance):

  • cfg.filename (str): absolute path to the laoded config file

  • cfg.autostart_filename (str): file used to start pibooth at Raspberry Pi startup

join_path(*names)[source]

Return the directory path of the configuration file and join it the given names.

Parameters:

names (str) – names to join to the directory path

add_option(section, option, default, description, menu_name=None, menu_choices=None)[source]

Add a new option to the configuration and defines its default value.

Parameters:

  • section (str) – section in which the option is declared

  • option (str) – option name

  • default (any) – default value of the option

  • description (str) – description to put in the configuration

  • menu_name (str) – option label on graphical menu (hidden if None)

  • menu_choices (any) – option possible choices on graphical menu

get(section, option, **kwargs)[source]

Get a value from config. Return the default value if the section or option is not defined.

Parameters:

  • section (str) – config section name

  • option (str) – option name

Returns:

value

Return type:

str

set(section, option, value=None)[source]

Set a value to config. Create the section if it is not defined.

Parameters:

  • section (str) – config section name

  • option (str) – option name

  • value (str) – value to set

gettyped(section, option)[source]

Get a value from config and try to convert it in a native Python type (using the ast module).

Parameters:

  • section (str) – config section name

  • option (str) – option name

getpath(section, option)[source]

Get a path from config, evaluate the absolute path from configuration file path.

Parameters:

  • section (str) – config section name

  • option (str) – option name

gettuple(section, option, types, extend=0)[source]

Get a list of values from config. The values type shall be in the list of authorized types. This method permits to get severals values from the same configuration option.

If the option contains one value (with acceptable type), a tuple with one element is created and returned.

Parameters:

  • section (str) – config section name

  • option (str) – option name

  • types (list) – list of authorized types

  • extend (int) – extend the tuple with the last value until length is reached

getboolean(section, option, *, raw=False, vars=None, fallback=<object object>, **kwargs)
getfloat(section, option, *, raw=False, vars=None, fallback=<object object>, **kwargs)
getint(section, option, *, raw=False, vars=None, fallback=<object object>, **kwargs)

app

class PiboothApplication(config, plugin_manager, window_type='pygame')[source]

Main class representing the pibooth software.

PiboothApplication emits the following events consumed by the view:

  • EVT_BUTTON_CAPTURE

  • EVT_BUTTON_PRINT

  • EVT_BUTTON_SETTINGS

The following attributes are available for use in plugins (app reprensents the PiboothApplication instance):

  • app.capture_nbr (int): number of capture to be done in the current sequence

  • app.capture_date (str): date (% Y-%m-%d-%H-%M-%S) of the first capture of the current sequence

  • app.capture_choices (tuple): possible choices of captures numbers.

  • app.previous_picture (PIL.Image): picture generated during last sequence

  • app.previous_animated (itertools.cycle()): infinite list of picture to display during animation

  • app.previous_picture_file (str): file name of the picture generated during last sequence

  • app.count (pibooth.counters.Counters): holder for counter values

  • app.camera (pibooth.camera.base.BaseCamera): camera used

  • app.buttons (gpiozero.ButtonBoard): access to hardware buttons capture and printer

  • app.leds (gpiozero.LEDBoard): access to hardware LED capture and printer

  • app.printer (pibooth.printer.Printer): printer used

property picture_filename

Return the final picture file name.

enable_plugin(plugin)[source]

Enable plugin with given name. The “configure” and “startup” hooks will be called if never done before.

Parameters:

plugin (object) – plugin to disable

disable_plugin(plugin)[source]

Disable plugin with given name.

Parameters:

plugin (object) – plugin to disable

update(events)[source]

Update application and call plugins according to Pygame events. Better to call it in the main thread to avoid plugin thread-safe issues.

Parameters:

events (list) – list of events to process.

exec(enable_profiler=False)[source]

Start application.

win

class BaseWindow(size=(800, 480), background=(0, 0, 0), text_color=(255, 255, 255), arrow_location='bottom', arrow_offset=0, debug=False)[source]

Base class for window.

BaseWindow emits the following events consumed by plugins:

  • EVT_PIBOOTH_CAPTURE

  • EVT_PIBOOTH_PRINT

  • EVT_PIBOOTH_SETTINGS

The following attributes are available for use in plugins (win reprensents the BaseWindow instance):

  • win.type (str): name of the graphical backend library (nogui or pygame)

  • win.text_color (tuple): RGB color tuple used for texts

  • win.bg_color_or_path (tuple/str): RGB color tuple or path to image used for background

  • win.is_fullscreen (bool): True if the window is display in full screen

  • win.is_menu_shown (bool): True if the settings menu is displayed

add_scene(scene)[source]

Add a scene to the internal dictionary.

Parameters:

scene (sub-class instance of BaseScene) – scene to add

remove_scene(name)[source]

Remove a scene from the internal dictionary.

set_scene(name)[source]

Set the current scene.

set_menu(app, cfg, pm)[source]

Set the menu.

resize(size)[source]

Resize the window only if not fullscreen.

Parameters:

size (tuple) – new size of the scene

get_rect(absolute=False)[source]

Return a Rect object (as defined in pygame) for this window.

Parameters:

absolute (bool) – absolute position considering the window centered on screen

eventloop(app_update)[source]

Main GUI events loop (blocking).

Parameters:

app_update (callable) – function update application state

set_background(color_or_path)[source]

Set background sprite.

Parameters:

color_or_path (tuple or str) – color of path to an imgae

set_system_status(printer_queue_size=None, printer_failure=None, total_printed=None, total_taken=None)[source]

Set the current number of tasks in the printer queue.

toggle_fullscreen()[source]

Set window to full screen or initial size.

toggle_menu()[source]

Show/hide settings menu.
